Eibenstock PDB 200I Diamond Core Drilling Machine | 2500W power | 200mm core cutting capacity | 450 RPM | 490mm stroke | Safety clutch.

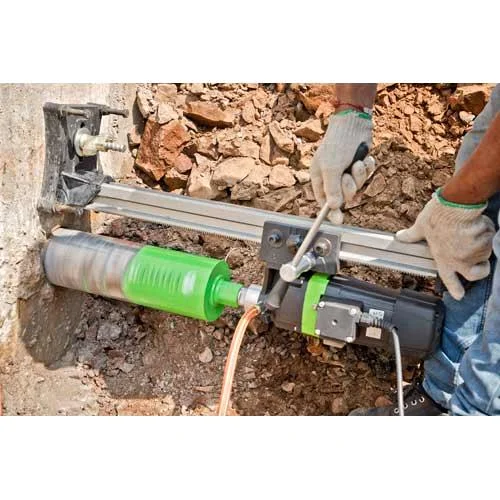

The Eibenstock PDB 200I is a powerful professional diamond core drilling machine designed for demanding construction, concrete drilling and industrial applications. Equipped with a 2500W power input, this machine delivers the high-performance drilling capability required for large-diameter core drilling. With a maximum core cutting capacity of 200 mm, the PDB 200I is suitable for producing large and precise core holes in demanding applications. Its 450 RPM rated speed provides controlled drilling performance for compatible diamond core drilling accessories. The machine features a 1 1/4” UNC spindle connection, allowing it to be used with suitable diamond core drilling tools and accessories. A 490 mm stroke provides substantial drilling travel, supporting deeper drilling applications. Mechanical Safety Clutch For enhanced operator and machine protection, the Eibenstock PDB 200I incorporates a mechanical safety clutch. This helps provide additional protection during demanding drilling operations and contributes to safer, more controlled working conditions. Key Features Power Input: 2,500W Rated Voltage: 220–240V Core Cutting Capacity: Up to 200 mm Rated Speed: 450 RPM Spindle Connection: 1 1/4” UNC Mechanical Safety Clutch: Available Stroke: 490 mm Weight: 18 kg Applications The Eibenstock PDB 200I is suitable for professional concrete core drilling, construction, installation work, building services and industrial drilling applications. Its 200 mm core cutting capacity makes it particularly useful where large-diameter core holes are required.
