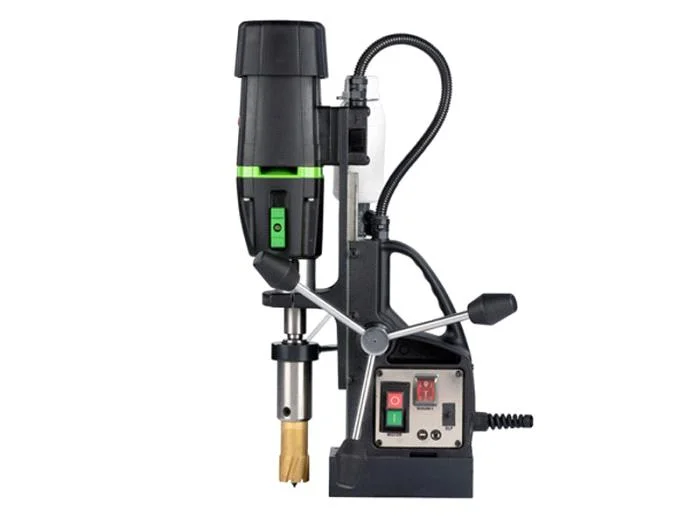

Eibenstock KBM42R-RL | Magnetic Core Drill Machine with 1200W power | 12–50mm core cutting capacity | 50mm cutting depth | M20 tapping | 22mm twist drill capacity

The Eibenstock KBM42R-RL Magnetic Core Drill Machine is a compact and powerful industrial drilling solution designed for demanding onsite and production drilling applications. With a 1200 W power input and a lightweight 12.7 kg design, this magnetic core drilling machine offers an excellent balance of power, portability and drilling performance. It provides a core cutting capacity of 12 to 50 mm with a maximum core cutting depth of 50 mm, making it suitable for creating accurate holes in steel plates and metal structures. The machine also supports twist drilling up to 22 mm and M20 tapping, expanding its application range for fabrication, structural steelwork, installation and maintenance tasks. The dual rated speed range of 100–250 RPM and 180–450 RPM allows the operator to select an appropriate speed for different drilling requirements and materials. Its compact construction and favorable weight-to-power ratio make it well suited for onsite jobs where multiple holes need to be drilled throughout the working day. Technical Specifications Model Eibenstock KBM42R-RL Rated Voltage 220–240 V Power Input 1200 W Core Cutting Capacity 12–50 mm Core Cutting Depth 50 mm Rated Speed 100–250 / 180–450 RPM Twist Drill Capacity 22 mm Tapping Capacity M20 Weight 12.7 kg Applications The Eibenstock KBM42R-RL is suitable for industrial fabrication, structural steelwork, steel plate drilling, machinery installation, maintenance, construction and onsite production jobs where precise and repeated drilling is required. With its 1200 W motor, 50 mm core cutting capacity, M20 tapping capability and 12.7 kg weight, the KBM42R-RL is a practical choice for professionals looking for a versatile magnetic core drilling machine for demanding metalworking applications.
