Eibenstock PDM 35X core drill with 1050W power | 12–35mm core capacity | 400 RPM speed | 19mm Weldon arbor | pipe drilling from 100–500mm.

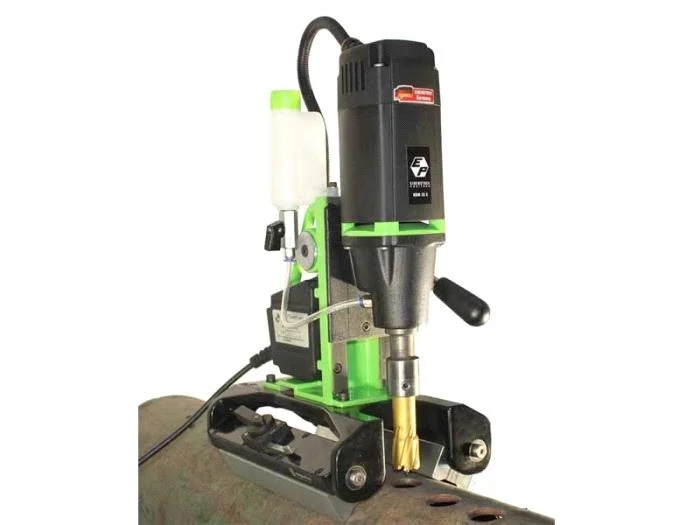

The Eibenstock PDM 35X is a professional core drilling machine designed for efficient drilling on pipes and square sections in industrial fabrication, construction and maintenance applications. Powered by a 1050W motor and operating on 220–240V, it delivers reliable performance for demanding core drilling tasks. The PDM 35X provides a core cutting capacity of 12 to 35 mm and operates at a rated speed of 400 RPM. Its 19 mm Weldon direct arbor is designed for use with compatible core drilling tools, providing a secure connection for professional drilling applications. A major advantage of the PDM 35X is its suitability for pipe drilling. It can accommodate round pipes from 100 mm to 500 mm in diameter with a maximum pipe wall thickness of 13 mm. For square pipes, it supports a minimum square pipe size of 90 mm, making it a versatile solution for steel fabrication and pipework applications. With a 13.45 kg weight, the machine provides a practical balance between stability and portability, making it suitable for both workshop and onsite applications. Key Features Brand: Eibenstock Model: PDM 35X Rated Voltage: 220–240 V Power Input: 1050 W Rated Speed: 400 RPM Core Cutting Capacity: 12–35 mm Direct Arbor: 19 mm Weldon Minimum Round Pipe Size: 100 mm Maximum Round Pipe Size: 500 mm Maximum Pipe Thickness: 13 mm Minimum Square Pipe Size: 90 mm Weight: 13.45 kg Professional Pipe Drilling Design: Suitable for round and square pipe applications Applications The Eibenstock PDM 35X is suitable for pipe fabrication, steel construction, structural steelwork, industrial maintenance, metalworking, construction and onsite installation. Its wide pipe-size range makes it particularly useful for drilling holes in round and square steel sections.
